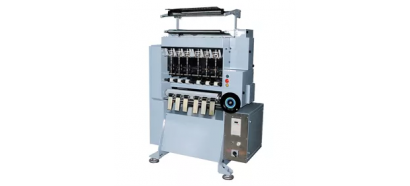

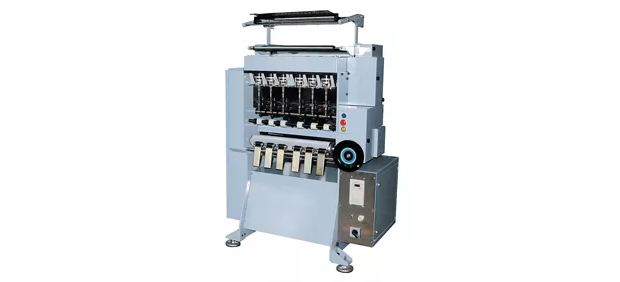

This m/c is strong tensile force & high speed cord knitting m/c.
It is moved by belt, no oil inside, just need a little space for the m/c.
The m/c is noiseless and can be fed directly from bobbins or cones.
The products can be used in shoelace, Elastic cord, trimmings, flat cord, ropes...etc.
No special maintenance is required.
| Specification | M/C N.W. | 400 kgs | ||
|---|---|---|---|---|
| CREEL N.W. | 150 kgs | |||
| M/C G.W. | 450 kgs | |||
| CREEL G.W. | 250 kgs | |||
| M/C size | 125x80x170 /cm by wooden case | |||
| Creel size | 285x74x26 /cm by wooden case | |||
| Option Device | Creel for 200 bobbin (Special size) | 1 set | ||
| Finish product collector | 1 set | |||
| Yarn tensioner | 2 sets | |||
| Elastic yarn feeding roller | 1 set | |||
| Yarn collecting equipment | 1 set | |||
| Technical Data | Cylinder | 6 (CK-06) | 10 (CK-10) | 6 (CKD-06) |
| Gauge | 3,4,6,8,10,12,16 | 3,4,6,8,10,12 | 3,4,6,8,10,12,16 | |
| Speed | 800~1500 rpm | |||
| Standard Equipment | ITEM UNIT | |||
| Motor (1.5HP) | 1 pcs | |||
| Automatic stop device | 1 set | |||
| Inverter | 1 set | |||
| Latch needle | 200 pcs | |||
| Dropper | 200 pcs | |||
| Tool | 1 set | |||
| Diameter | 1mm~12mm | |||
We reserve the right to modify the specification and design of machine without prior notice.
The above data is for reference only, other terma set on meeting.
